2" Bolt On Throat Neodymium Driver with Spacer, 2" Throat Phenolic VC 680 Watts and PRO-HA52/BK Horn 680 Watts 117dB 8 Ohm Mounting Depth 5.22" Throat

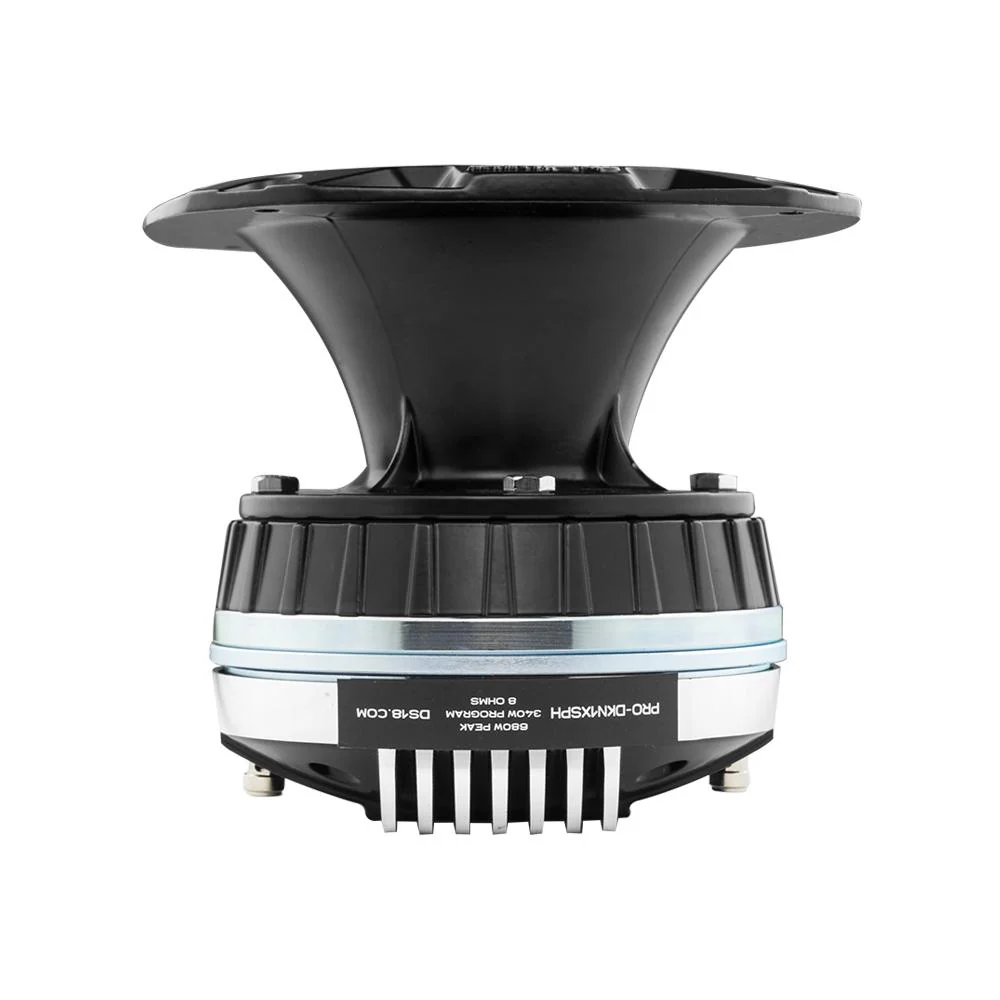

DS18 PRO-DKN1XSPH 2" Bolt On Throat Neodymium Driver with Spacer, 2" Throat Phenolic VC 680 Watts and PRO-HA52/BK Horn 680 Watts 117dB 8 Ohm Mounting Depth 5.22" Throat
The DKN1XSPH includes the DS18 DRN1 driver plus our HA-52 shorty throat so you only need 5.2 inches mounting depth to mount these ear ripping neo drivers. The throat is plastic with DS18 logos and made for maximum directional efficiency. With an AES power handling of 170w and peak at 680w you will be sure to draw everyone's attention to your audio system
Highlights
- PRO-DRN1 neodymium driver offers the highest DB at the greatest efficiency offered for war blasting high range frequencies
- Included HA-52 driver included to make this driver short and light and able to mount in most shallow depth boxes
- DS18 DB spacer included to maximize Decibels with new technology that increases loudness without extra wattage required
Technical Details
| Throat Diameter | 2" |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Peak Power Handling | 680W |
| Program Power Handling | 340W |
| AES Power Handling | 170W |
| Sensitivity (1w/1m) | 117 dB |
| Frequency response | 630Hz-16KHz |
| Recommended HI Pas Crossover | 900 Hz |
| Motor | |
| Voice Coil Diameter | 2.03" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Phenolic |
| Magnet Material | Neodymium |
| Magnet Size | 5.27x 0.15" |
| Measurements | |
| Overall Diameter | 7" |
| Overall Depth | 5" |
| Bolt Size | 0.21" |
| Mounting Hole Diameter | 6.3" |
| Motor Diameter | 5.27" |
| Mounting Depth | 5.22" |
