NVY 4-Channel Full-Range IPX7 Submersible Marine and Powersports Amplifier 120 x 4 @ 4-Ohm Watts RMS
DS18 HYDRO NVY-IPX7.4 Full-Range Class D Marine 4-Channel Amplifier 120 x 4 @4 Ohm Watts Waterproof IP67
The NVY series was manufactured to put power back into your hands whether you’re out on the great blue or maneuvering on the dirt path less traveled.
Our latest amplifier added to this series has an IPX waterproof rating of IP77, giving this fortified beast of a machine the ability to be submerged in water as deep as 1 meter for up to 30 minutes. It also has a 2 CH/ 4 CH input selector giving you complete control over how much power gets designated to each of your speakers.
Place this amplifier anywhere using our Direct Power harness design manufactured to give you creative control over where you get the wave making tunes on your marine vehicle.
Order this amplifier while supplies last!
Highlights

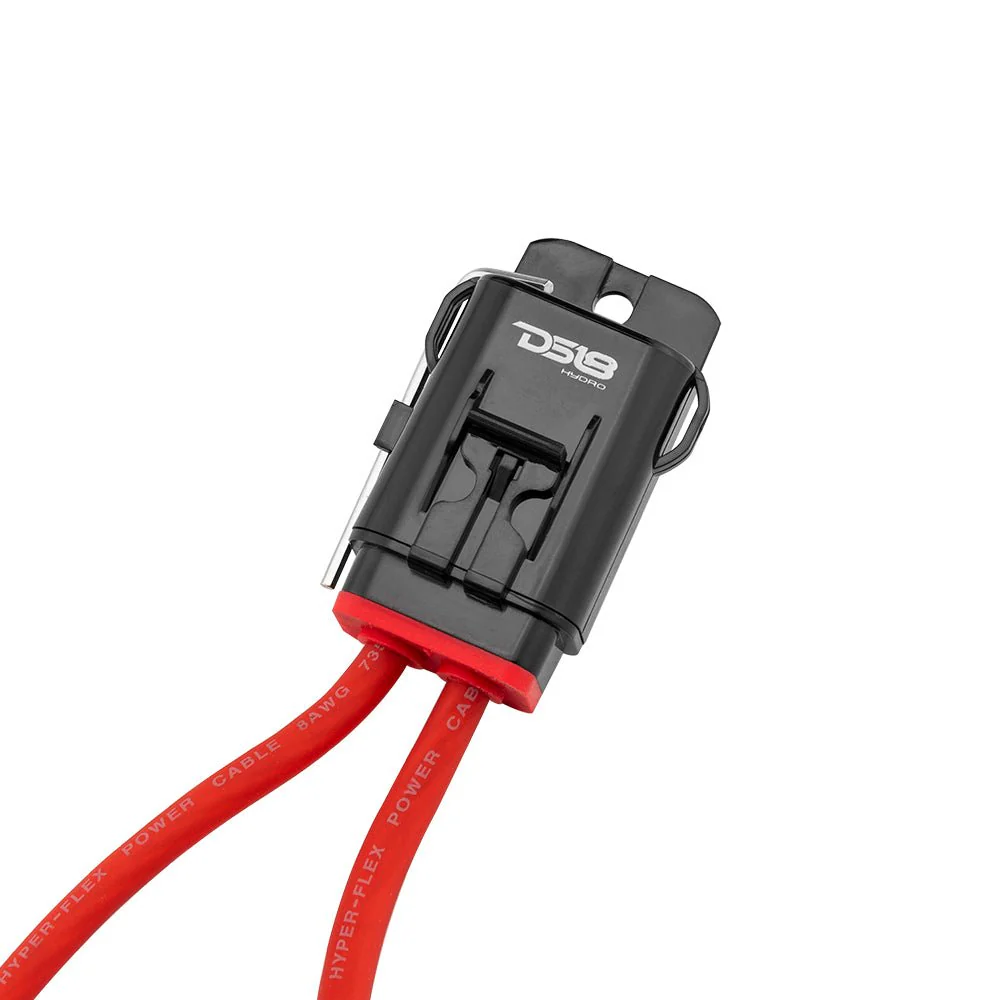

- The included marine grade fuse and fuse holder that is connected inline with your main power wire, will help with ultimate protection against the elements.
- Latest Digital amplifier design with SMC technology
- Submergible IP67 Waterproof Rating
- UV, Salt and Fog protection

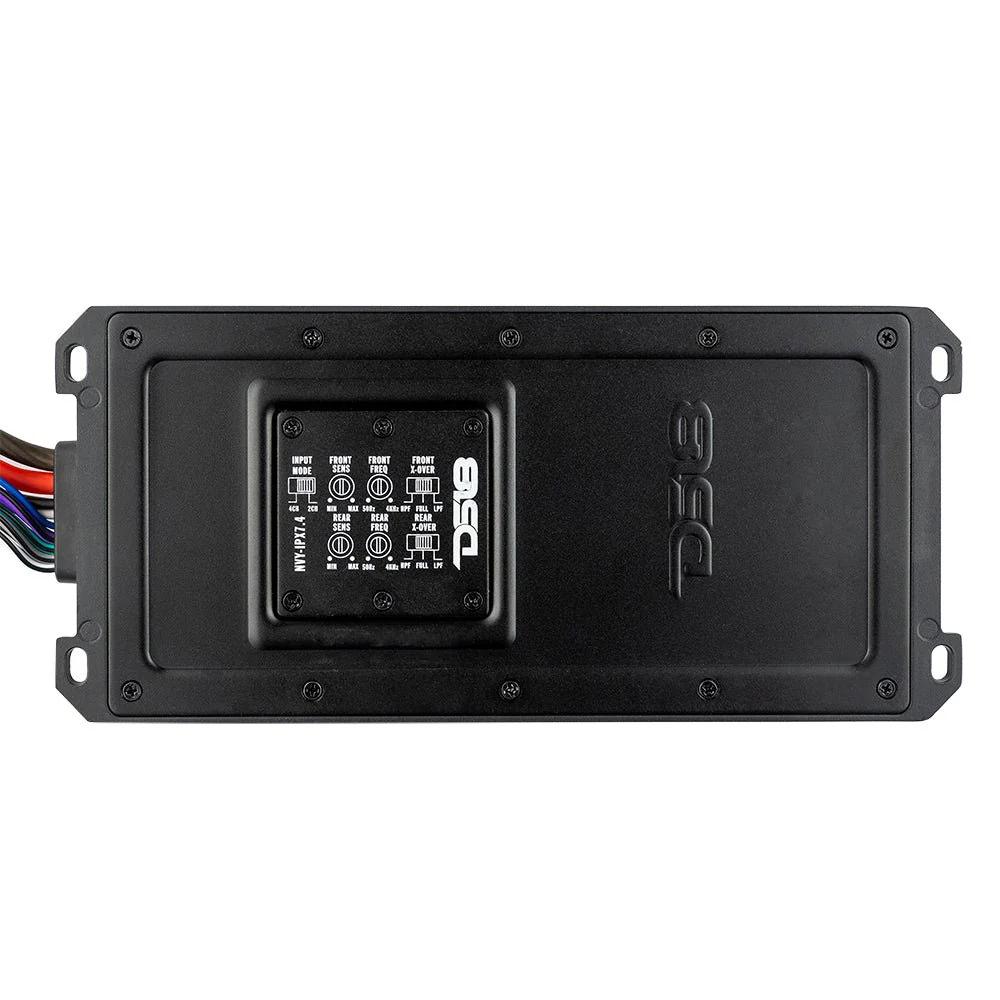

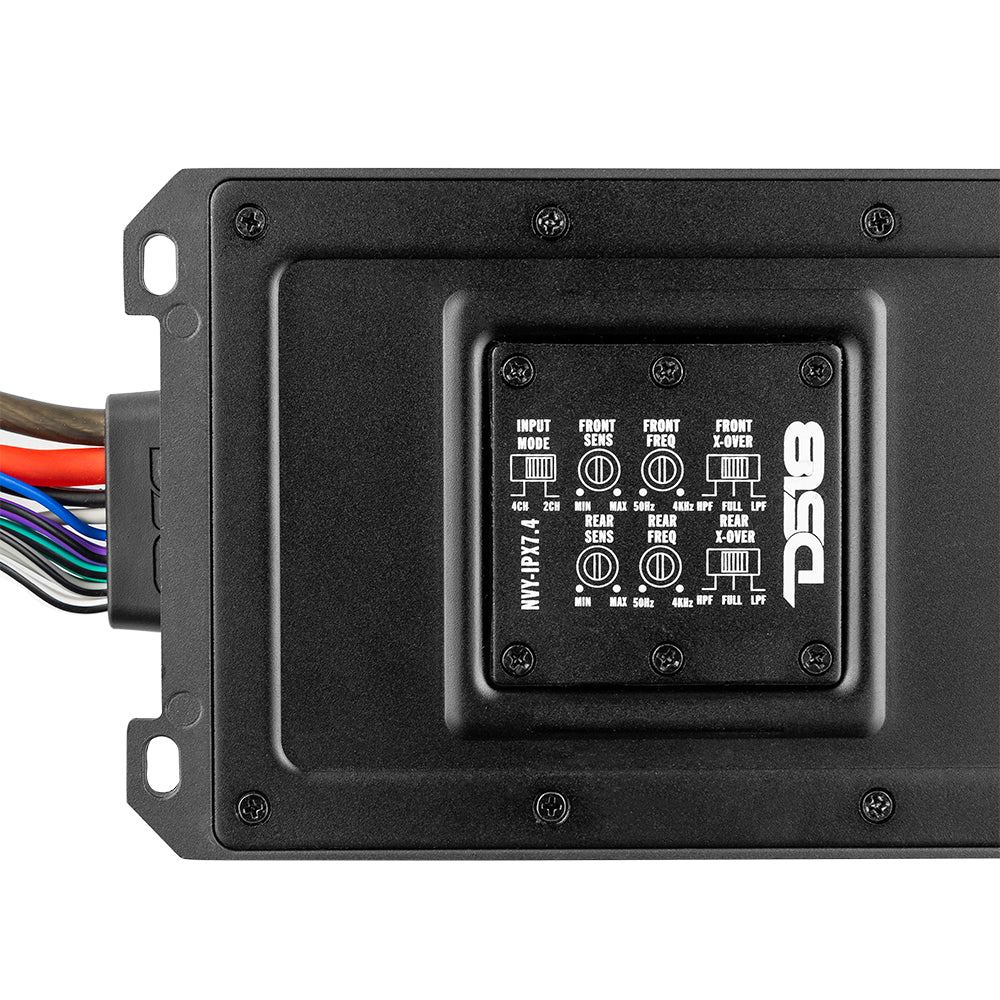

- 2 CH / 4 CH Input Selector
- Maximum output of 350W x 2 CH bridged at 4-Ohms, 200W x 4 CH at 2-Ohms, and 120W x 4 CH at 4-Ohms
Great For:
- Marine
- Off road
- DIY Projects
Technical Details
| Specifications | |
| POWER | |
| Total Watts (Peak) | 1440 Watts |
| RMS Power @ 4 ohm | 4 x 120 Watts |
| RMS Power @ 2 ohm | 4 x 200 Watts |
| RMS Power @ 4 ohm Bridge | 2 x 350 Watts |
| AUDIO | |
| Frequency Response | 20Hz - 20KHz |
| Signal to Noise Ratio 1W@4Ω | >90 dB |
| Efficiency @ 4 ohm | 94% |
| Input Impedance | >20KΩ |
| Channel Separation | >-70 dB |
| Total Harmonic Distortion (THD) | <0.1 % |
| Low Level Input Range | 270mV - 5.6V |
| Selectable X-Over | HPF/FULL/LPF |
| X-Over Filter Range | 50Hz-4KHz |
| FEATURES | |
| Amplifier Class | Digital (D) |
| Amplifier Type | Full Range Digital Marine Amplifier |
| Number of Channels | 4 |
| Minimum Impedance | 2 OHM / Ch (4 OHM Bridge) |
| LED Indicator | Protection (Red) | Power (Blue) |
| Power Input Size | 8 Ga |
| Fuse | 2 x 40A |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (9.5-16V) |
| Body Color | Finish | Black Anodize |
| 2CH | 4CH Input Selector | Yes |
| Waterproof Rating | IP67 |
| UV / Salt Fog Protection | Yes |
| Direct Power Harness Design | Yes |
| Surface Mount Component Technology | Yes |
| Marine Grade Fuse Holder | Yes |
| MEASUREMENT | |
| Overall Length | 10" / 253mm |
| Overall Wide | 4.5" / 116mm |
| Overall Height | 1.9" / 48.5mm |
| Heatsink Length | 8.5" / 216mm |
| Gross Single Unit Weight | 1.8Kg |
