High Volt 7-Band Equalizer with High Level Input and Auto Turn On

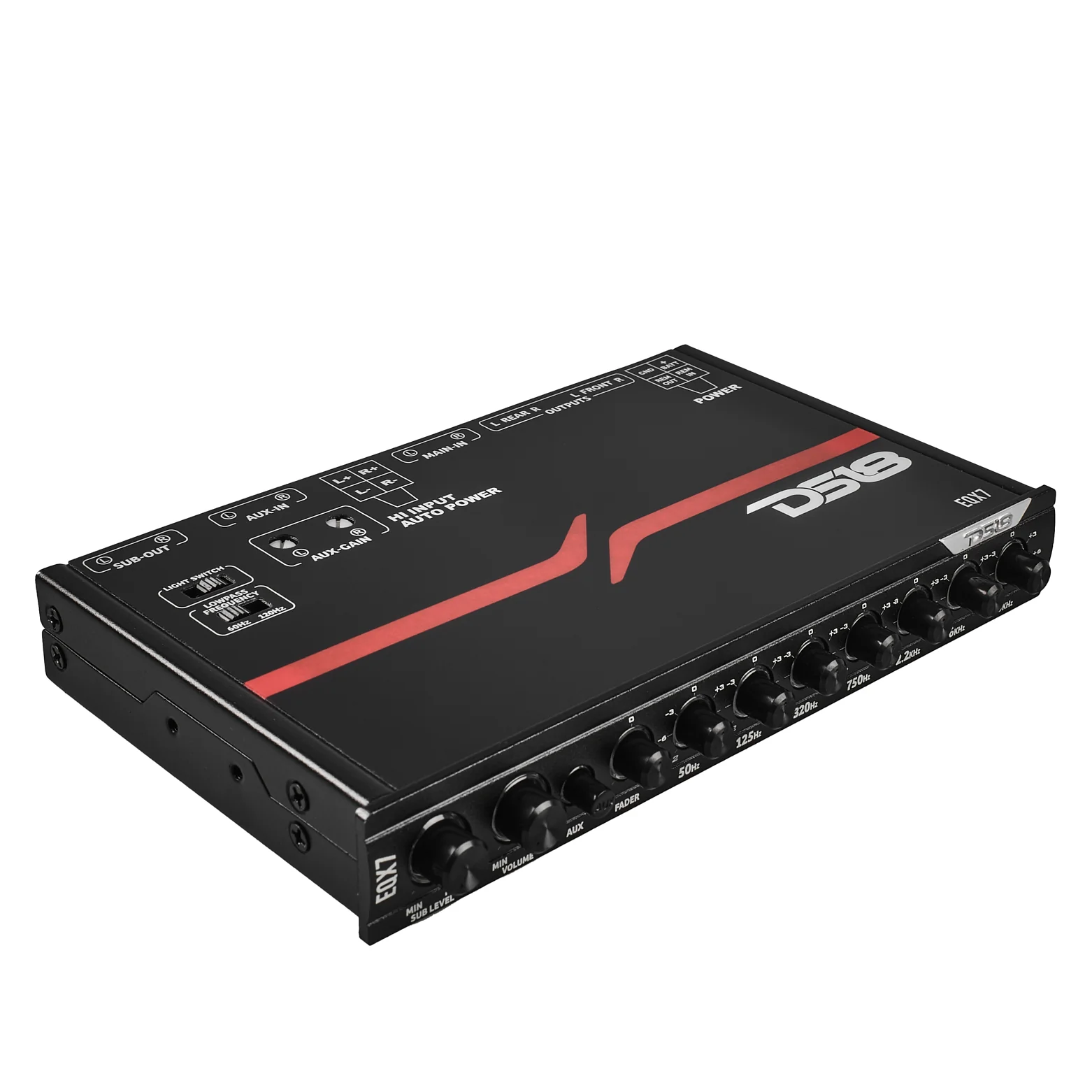

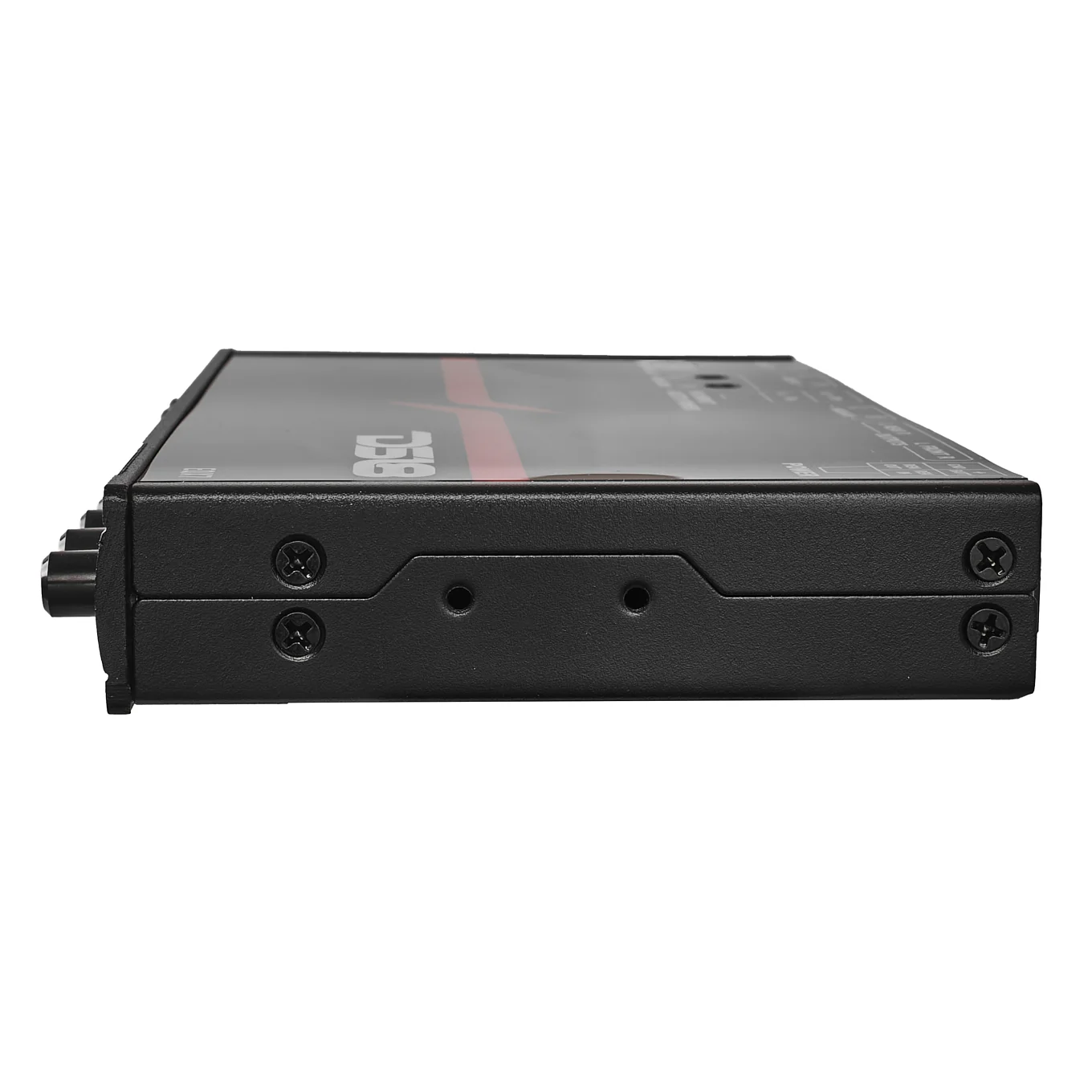

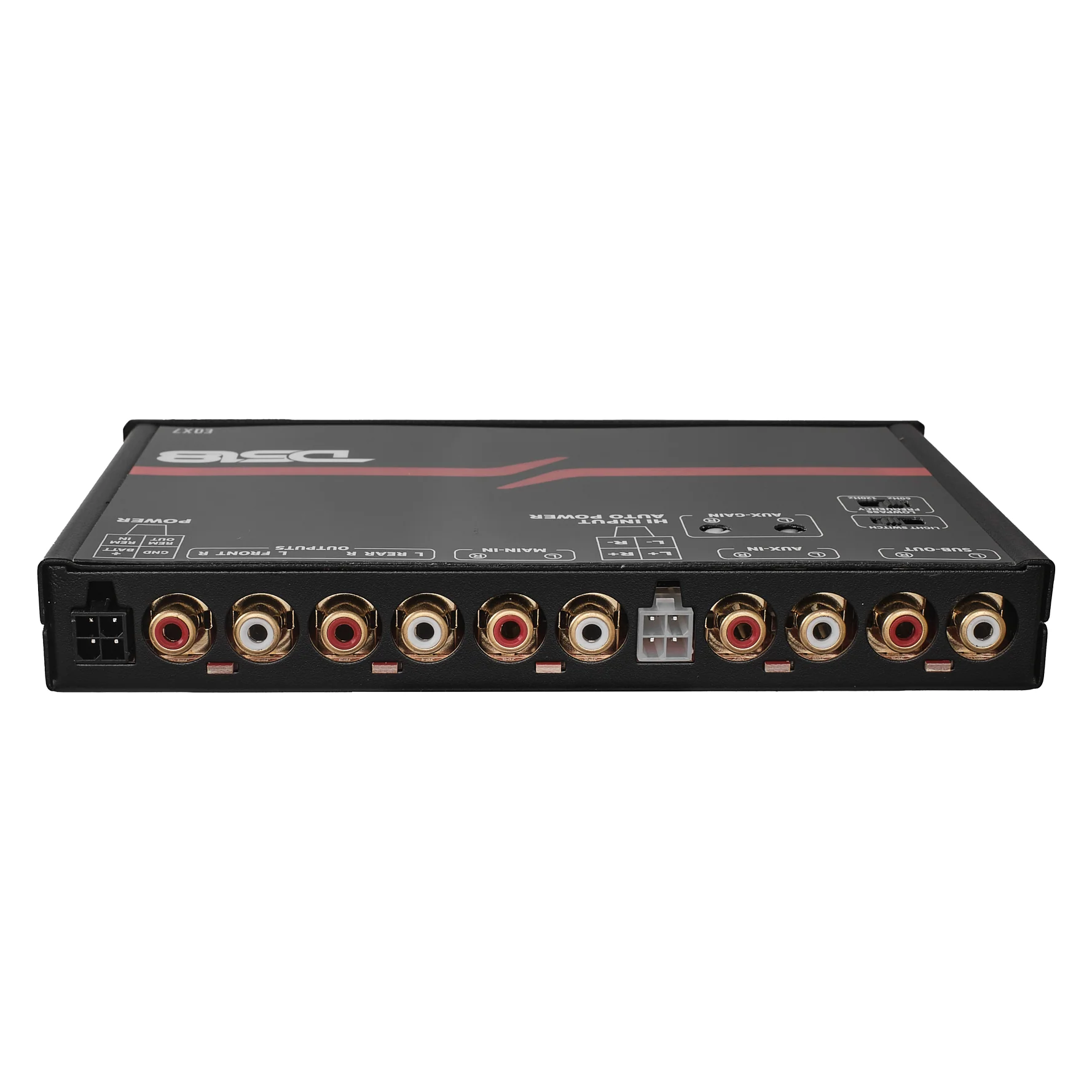

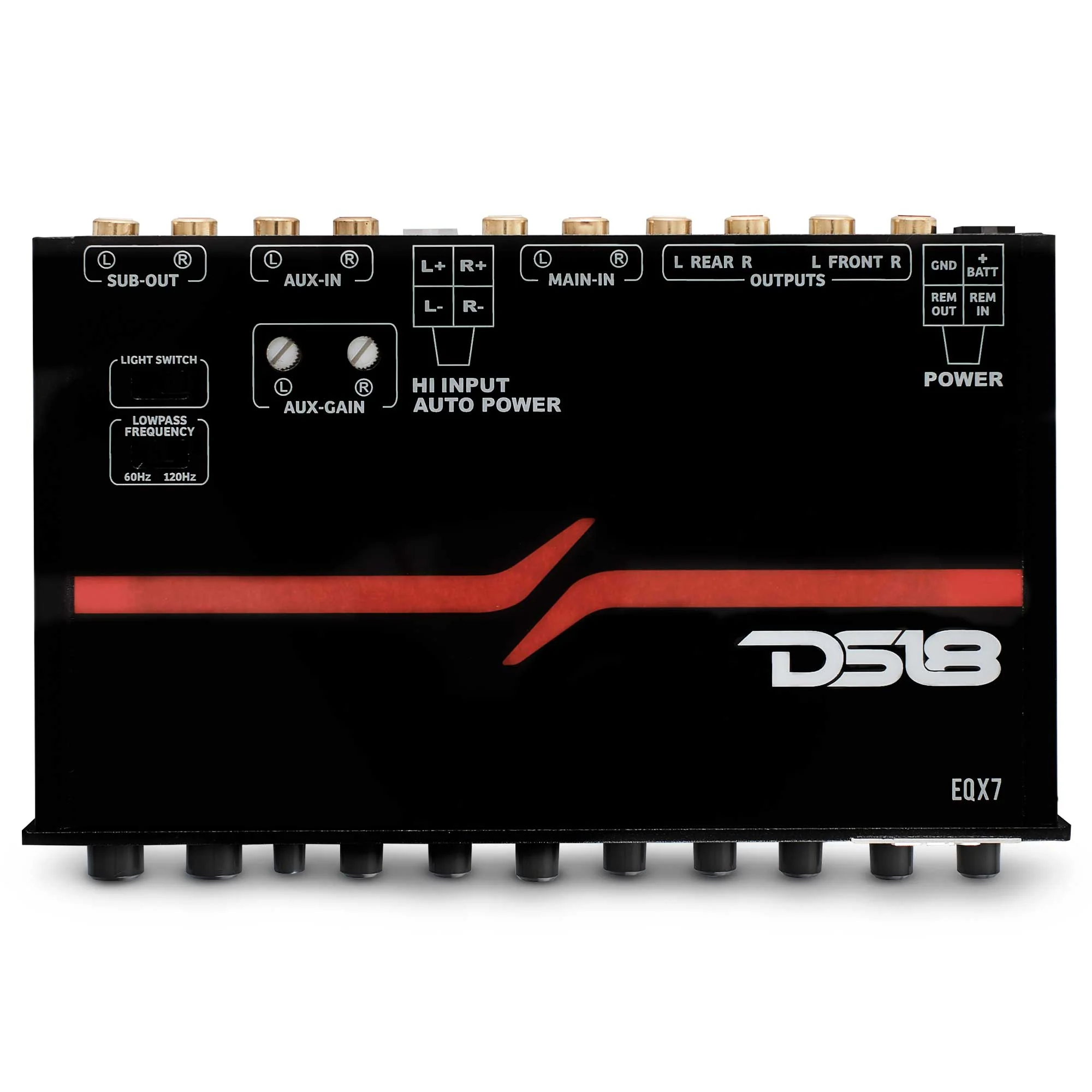

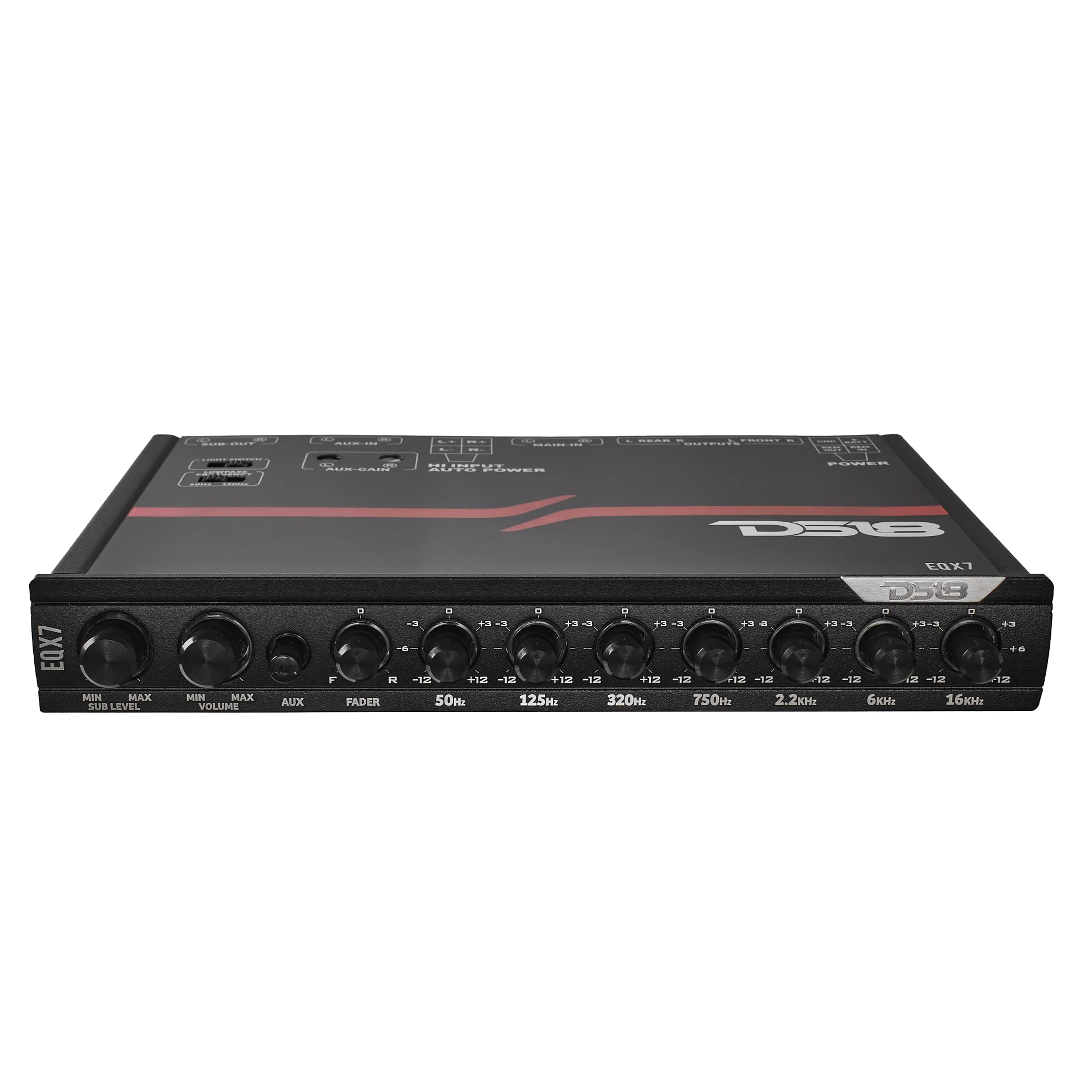

DS18 EQX7 8 Volts , 7-Band Equalizer with High Level Input and Auto Turn On
Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic needs. This EQ has 7 separate bands including bass and are adjusted in real time while sitting in your vehicle and on the fly with just a twist of your fingers. The included hi-lo converter also makes it the perfect choice for those looking to add amplifiers to their factory radio.
Highlights
- Adjustable bass for perfect bass adjustments.
- Hi-Lo conversion added so you do not need a converter to be able to use your factory radio.
- Small and compact size makes it very easy to mount and blend in.
Technical Details
| Model | EQX7 |
| Boost / Cut | 12dB |
| S/N ratio | 100dB |
| Frequency Response | 10Hz-50KHz +/-1dB |
| Maximum Output voltage | 8V |
| THD | 0.005% |
| Input impedance | 50mV- 3 V |
| Head Room | 20 dB |
| Output impedance | 2K Ohms |
| Input impedance | 20K Ohms |
| Stereo Separation | 82 dB/1 KHz |
| Operating voltage | 11V-15V Negative Ground |
| Dimension(L x W x H) | 7" x 4.40" x 1.18" |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
High Volt 7-Band Equalizer with High Level Input and Auto Turn On
High Volt 7-Band Equalizer with High Level Input and Auto Turn On
DS18 EQX7 8 Volts , 7-Band Equalizer with High Level Input and Auto Turn On
Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic needs. This EQ has 7 separate bands including bass and are adjusted in real time while sitting in your vehicle and on the fly with just a twist of your fingers. The included hi-lo converter also makes it the perfect choice for those looking to add amplifiers to their factory radio.
Highlights
- Adjustable bass for perfect bass adjustments.
- Hi-Lo conversion added so you do not need a converter to be able to use your factory radio.
- Small and compact size makes it very easy to mount and blend in.
Technical Details
| Model | EQX7 |
| Boost / Cut | 12dB |
| S/N ratio | 100dB |
| Frequency Response | 10Hz-50KHz +/-1dB |
| Maximum Output voltage | 8V |
| THD | 0.005% |
| Input impedance | 50mV- 3 V |
| Head Room | 20 dB |
| Output impedance | 2K Ohms |
| Input impedance | 20K Ohms |
| Stereo Separation | 82 dB/1 KHz |
| Operating voltage | 11V-15V Negative Ground |
| Dimension(L x W x H) | 7" x 4.40" x 1.18" |
